cleanup and presentable

nbody/presentation/helpers.typ

@@ -2,7 +2,7 @@

 #import "@preview/based:0.2.0": base64

-#let code_font_scale = 0.6em
+#let code_font_scale = 0.5em

 #let cell_matcher(cell, cell_tag) = {
   // Matching function to check if a cell has a specific tag

nbody/presentation/main.typ

@@ -1,8 +1,5 @@
 #import "@preview/diatypst:0.2.0": *

-// #set text(font: "Cantarell")
-// #set heading(numbering: (..nums)=>"")
-
 #show: slides.with(
   title: "N-Body project ",
   subtitle: "Computational Astrophysics, HS24",
@@ -13,15 +10,13 @@
   // ratio: 16/9,
 )

+#show footnote.entry: set text(size: 0.6em)
+#set footnote.entry(gap: 3pt)
+#set align(horizon)
+

 #import "helpers.typ"

-// KINDA COOL:
-// _diatypst_ defines some default styling for elements, e.g Terms created with ```typc / Term: Definition``` will look like this
-
-// / *Term*: Definition
-
-

 // Setup of code location
 #let t1 = json("../task1.ipynb")
@@ -41,10 +36,7 @@


 == Overview - the system
-Get a feel for the particles and their distribution. [#link(<task1:plot_particle_distribution>)[code]]
+Get a feel for the particles and their distribution
-
-
-
 #columns(2)[
   #helpers.image_cell(t1, "plot_particle_distribution")
   // Note: for visibility the outer particles are not shown.
@@ -54,15 +46,24 @@ Get a feel for the particles and their distribution. [#link(<task1:plot_particle
   - a _spherical_ distribution

   $==>$ treat the system as a *globular cluster*
-
+  #footnote[Unit handling [#link(<task1:function_apply_units>)[code]]]
 ]

+// It is a small globular cluster with
+// - 5*10^4 stars => m in terms of msol
+// - radius - 10 pc
+// Densities are now expressed in M_sol / pc^3
+// Forces are now expressed
+
+

 == Density
-We compare the computed density with the analytical model provided by the _Hernquist_ model:
+Compare the computed density
+#footnote[Density sampling [#link(<task1:function_density_distribution>)[code]]]
+with the analytical model provided by the _Hernquist_ model:

 #grid(
-  columns: (1fr, 2fr),
+  columns: (3fr, 4fr),
   inset: 0.5em,
   block[
     $
@@ -72,15 +73,12 @@ We compare the computed density with the analytical model provided by the _Hernq
     $
       r_"hm" = (1 + sqrt(2)) dot a
     $
-
-    #text(size: 0.6em)[
-      Density sampling [#link(<task1:function_density_distribution>)[code]];
-    ]
   ],
   block[
     #helpers.image_cell(t1, "plot_density_distribution")
   ]
 )
+
 // Note that by construction, the first shell contains no particles
 // => the numerical density is zero there
 // Having more bins means to have shells that are nearly empty
@@ -89,45 +87,41 @@ We compare the computed density with the analytical model provided by the _Hernq


 == Force computation
-// N Body and variations
 #grid(
-  columns: (2fr, 1fr),
+  columns: (3fr, 2fr),
   inset: 0.5em,
   block[
     #helpers.image_cell(t1, "plot_force_radial")
-    // The radial force is computed as the sum of the forces of all particles in the system.
-    #text(size: 0.6em)[
-      Analytical force [#link(<task1:function_analytical_forces>)[code]];
-      $N^2$ force [#link(<task1:function_n2_forces>)[code]];
-      $epsilon$ computation [#link(<task1:function_interparticle_distance>)[code]];
-    ]
   ],
   block[
     Discussion:
-    - the analytical method replicates the behavior accurately
+    - the analytical
-    - at small softenings the $N^2$ method has noisy artifacts
+      #footnote[Analytical force [#link(<task1:function_analytical_forces>)[code]]]
-    - a $1 dot epsilon$ softening is a good compromise between accuracy and stability
+      method replicates the behavior accurately
+    - at small softenings the $N^2$
+      #footnote[$N^2$ force [#link(<task1:function_n2_forces>)[code]]]
+      method has noisy artifacts
+    - a $1 dot epsilon$
+      #footnote[$epsilon$ computation [#link(<task1:function_interparticle_distance>)[code]]]
+      softening is a good compromise between accuracy and stability
   ]
 )

 // basic $N^2$ matches analytical solution without dropoff. but: noisy data from "bad" samples
 // $N^2$ with softening matches analytical solution but has a dropoff. No noisy data.
-
 // => softening $\approx 1 \varepsilon$ is a sweet spot since the dropoff is "late"


 == Relaxation
-
 We express system relaxation in terms of the dynamical time of the system.
 $
   t_"relax" = overbrace(N / (8 log N), n_"relax") dot t_"crossing"
 $
 where the crossing time of the system can be estimated through the half-mass velocity $t_"crossing" = v(r_"hm")/r_"hm"$.

-We find a relaxation of [#link(<task1:compute_relaxation_time>)[code]].
+We find a relaxation of $approx 30 "Myr"$ ([#link(<task1:compute_relaxation_time>)[code]])


-// === Discussion
 #grid(
   columns: (1fr, 1fr),
   inset: 0.5em,
@@ -140,6 +134,7 @@ We find a relaxation of [#link(<task1:compute_relaxation_time>)[code]].
     - $=>$ relaxation time increases
   ]
 )
+
 // The estimate for $n_{relax}$ comes from the contribution of each star-star encounter to the velocity dispersion. This depends on the perpendicular force

 // $\implies$ a bigger softening length leads to a smaller $\delta v$.
@@ -164,7 +159,7 @@ We find a relaxation of [#link(<task1:compute_relaxation_time>)[code]].
 )[
   #helpers.image_cell(t2, "plot_particle_distribution")

-  $=>$ use $M_"sys" approx 10^4 M_"sol" + M_"BH"$
+  $==>$ use $M_"sys" approx 10^4 M_"sol" + M_"BH"$
 ]


@@ -180,55 +175,83 @@ We find a relaxation of [#link(<task1:compute_relaxation_time>)[code]].
   inset: 0.5em,
   block[
     #helpers.image_cell(t2, "plot_force_radial_single")
-    // The radial force is computed as the sum of the forces of all particles in the system.
-    #text(size: 0.6em)[
-      $N^2$ force [#link(<task1:function_n2_forces>)[code]];
-      $epsilon$ computation [#link(<task1:function_interparticle_distance>)[code]];
-      Mesh force [#link(<task2:function_mesh_force>)[code]];
-    ]
   ],
   block[
-    Discussion:
+    - using the (established) baseline of $N^2$
-    - using the (established) baseline of $N^2$ with $1 dot epsilon$ softening
+      #footnote[$N^2$ force [#link(<task1:function_n2_forces>)[code]]]
-    - small grids are stable but inaccurate at the center
+      with $1 dot epsilon$
+      #footnote[$epsilon$ computation [#link(<task1:function_interparticle_distance>)[code]]]
+      softening
+    - small grids
+      #footnote[Mesh force [#link(<task2:function_mesh_force>)[code]]]
+      are stable but inaccurate at the center
     - very large grids have issues with overdiscretization

     $==> 75 times 75 times 75$ as a good compromise
-    // Some other comments:
-    // - see the artifacts because of the even grid numbers (hence the switch to 75)
-    // overdiscretization for large grids -> vertical spread even though r is constant
-    // this becomes even more apparent when looking at the data without noise - the artifacts remain
   ]
 )

+// Some other comments:
+// - see the artifacts because of the even grid numbers (hence the switch to 75)
+// overdiscretization for large grids -> vertical spread even though r is constant
+// this becomes even more apparent when looking at the data without noise - the artifacts remain
+//
+// We can not rely on the interparticle distance computation for a disk!
+// Given softening length 0.037 does not match the mean interparticle distance 0.0262396757880128
+//
+// Discussion of the discrepancies
+// TODO
+

 #helpers.image_cell(t2, "plot_force_computation_time")
+// Computed for 10^4 particles => mesh will scale better for larger systems

 == Time integration
-=== Runge-Kutta
+*Integration step*
 #helpers.code_reference_cell(t2, "function_runge_kutta")

+*Timesteps*
+Chosen such that displacement is small (compared to the inter-particle distance) [#link(<task2:integration_timestep>)[code]]:
+$
+  op(d)t = 10^(-4) dot S / v_"part"
+$
+
+// too large timesteps lead to instable systems <=> integration not accurate enough
+
+*Full integration*
+
+[#link(<task2:function_time_integration>)[code]]
+

 #pagebreak()
-=== Results
+== First results
-#align(center, block(
+#helpers.image_cell(t2, "plot_system_evolution")
-  height: 1fr,
+
+
+== Varying the softening
+
+#helpers.image_cell(t2, "plot_second_system_evolution")
+
+

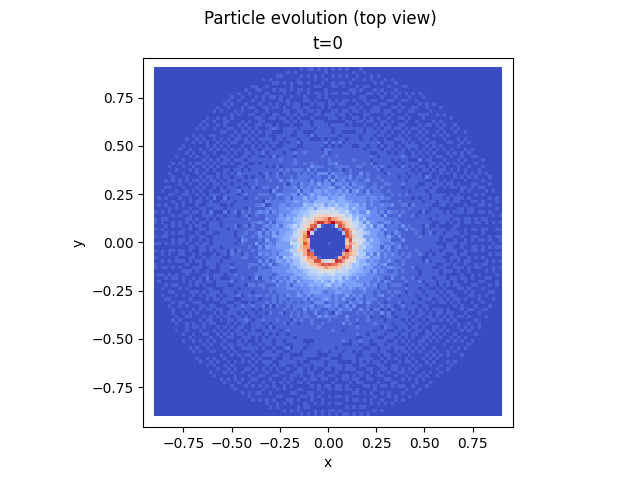

+== Stability [#link("../task2_nsquare_integration.gif")[1 epsilon]]
+#page(
+  columns: 2
 )[
-  #helpers.image_cell(t2, "plot_system_evolution")
+  #helpers.image_cell(t2, "plot_integration_stability")
-])
+]


 == Particle mesh solver
-sdlsd
+#helpers.image_cell(t2, "plot_pm_solver_integration")
-

+#helpers.image_cell(t2, "plot_pm_solver_stability")


 = Appendix - Code <appendix>

 == Code
-#helpers.code_cell(t1, "plot_particle_distribution")
+#helpers.code_reference_cell(t1, "function_apply_units")
-<task1:plot_particle_distribution>
+<task1:function_apply_units>

 #pagebreak(weak: true)

@@ -260,6 +283,15 @@ sdlsd
 #helpers.code_reference_cell(t2, "function_mesh_force")
 <task2:function_mesh_force>

+#pagebreak(weak: true)
+
+#helpers.code_cell(t2, "integration_timestep")
+<task2:integration_timestep>
+
+#pagebreak(weak: true)
+
+#helpers.code_cell(t2, "function_time_integration")
+<task2:function_time_integration>




nbody/utils/forces_cache.py

@@ -13,7 +13,7 @@ def cached_forces(cache_path: Path, particles: np.ndarray, force_function:callab

     n_particles = particles.shape[0]

-    kwargs_str = "_".join([f"{k}_{v}" for k, v in func_kwargs.items()])
+    kwargs_str = kwargs_to_str(func_kwargs)

     force_cache = cache_path / f"forces__{force_function.__name__}__n_{n_particles}__kwargs_{kwargs_str}.npy"
     time_cache = cache_path / f"time__{force_function.__name__}__n_{n_particles}__kwargs_{kwargs_str}.npy"
@@ -26,8 +26,27 @@ def cached_forces(cache_path: Path, particles: np.ndarray, force_function:callab
         force = force_function(particles, **func_kwargs)
         np.save(force_cache, force)
         time = 0
-        np.info(f"Timing {force_function.__name__} for {n_particles} particles")
+        logger.info(f"Timing {force_function.__name__} for {n_particles} particles")
         time = timeit.timeit(lambda: force_function(particles, **func_kwargs), number=10)
         np.save(time_cache, time)

     return force, time
+
+
+
+def kwargs_to_str(kwargs: dict):
+    """
+    Converts a dictionary of keyword arguments to a string.
+    """
+    base_str = ""
+    for k, v in kwargs.items():
+        print(type(v))
+        if type(v) == float:
+            base_str += f"{k}_{v:.3f}"
+        elif type(v) == callable:
+            base_str += f"{k}_{v.__name__}"
+        else:
+            base_str += f"{k}_{v}"
+        base_str += "__"
+
+    return base_str

nbody/utils/forces_mesh.py

@@ -71,7 +71,6 @@ def mesh_poisson(mesh: np.ndarray, G: float, spacing: float) -> np.ndarray:
     logger.debug(f"Proceeding to poisson equation with {rho_hat.shape=}, {k_inv.shape=}")
     grad_phi_hat = - 4 * np.pi * G * rho_hat * k_inv * 1j
     # nabla^2 phi => -i * k * nabla phi = 4 pi G rho => nabla phi = - i * rho * k / k^2
-    # TODO: check minus
     grad_phi = np.real(fft.ifftn(grad_phi_hat))
     return grad_phi

@@ -133,9 +132,7 @@ def mesh_poisson(mesh: np.ndarray, G: float, spacing: float) -> np.ndarray:
     rho_hat = fft.fftn(mesh)

     # we also need the wave numbers
-    spacing_3d = np.linalg.norm([spacing, spacing, spacing])
     k = fft.fftfreq(mesh.shape[0], spacing) * (2 * np.pi)
-    # TODO: check if this is correct
     # assuming the grid is cubic
     kx, ky, kz = np.meshgrid(k, k, k)
     k_sr = kx**2 + ky**2 + kz**2
@@ -145,10 +142,9 @@ def mesh_poisson(mesh: np.ndarray, G: float, spacing: float) -> np.ndarray:
         logger.debug(f"Count of ksquare zeros: {np.sum(k_sr == 0)}")
         show_mesh_information(np.abs(k_sr), "k_square")

-    k_sr[k_sr == 0] = np.inf
+    k_sr[k_sr == 0] = 1e-10
     # k_inv = k_vec / k_sr # allows for element-wise division

-    # logger.debug(f"Proceeding to poisson equation with {rho_hat.shape=}, {k_inv.shape=}")
     phi_hat = - 4 * np.pi * G * rho_hat / k_sr
     # nabla^2 phi becomes -i * k * nabla phi_hat = 4 pi G rho_hat
     #  => nabla phi = - i * rho * k / k^2
@@ -156,6 +152,7 @@ def mesh_poisson(mesh: np.ndarray, G: float, spacing: float) -> np.ndarray:
     return phi


+
 #### Helper functions for star mapping
 def create_mesh(min_pos: float, max_pos: float, n_grid: int) -> tuple[np.ndarray, np.ndarray, float]:
     """
@@ -239,3 +236,57 @@ def mesh_plot_2d(mesh: np.ndarray, name: str, only_z: bool = False):
         axs[2].imshow(np.sum(mesh, axis=2), origin='lower')
         axs[2].set_title("Flattened in z")
     plt.show()
+
+
+
+##################################
+# For the presentation - without logging
+def mesh__forces(particles: np.ndarray, G: float = 1, n_grid: int = 50, mapping: callable = None) -> np.ndarray:
+    """
+    Computes the gravitational force acting on a set of particles using a mesh-based approach.
+    Assumes that the particles array has the following columns: x, y, z, m.
+    """
+    max_pos = np.max(np.abs(particles[:, :3]))
+    mesh, axis, spacing = create_mesh(-max_pos, max_pos, n_grid)
+
+    fill_mesh(particles, mesh, axis, mapping)
+    # we want a density mesh:
+    cell_volume = spacing**3
+    rho = mesh / cell_volume
+
+    # compute the potential and its gradient
+    phi = mesh_poisson(rho, G, spacing)
+
+    # get the acceleration from finite differences of the potential
+    ax, ay, az = np.gradient(phi, spacing)
+    a_vec = - np.stack([ax, ay, az], axis=0)
+
+    # compute the particle forces from the mesh potential
+    forces = np.zeros_like(particles[:, :3])
+    ijks = np.digitize(particles[:, :3], axis) - 1
+
+    for i in range(particles.shape[0]):
+        m = particles[i, 3]
+        idx = ijks[i]
+        forces[i] = m * a_vec[..., idx[0], idx[1], idx[2]]
+
+    return forces
+
+
+def mesh__poisson(mesh: np.ndarray, G: float, spacing: float) -> np.ndarray:
+    """
+    Solves the poisson equation for the mesh using the FFT.
+    Returns the the potential - phi
+    """
+    rho_hat = fft.fftn(mesh)
+
+    # we also need the wave numbers
+    k = fft.fftfreq(mesh.shape[0], spacing) * (2 * np.pi)
+    # assuming the grid is cubic
+    kx, ky, kz = np.meshgrid(k, k, k)
+    k_sr = kx**2 + ky**2 + kz**2
+
+    k_sr[k_sr == 0] = np.inf
+
+    phi_hat = - 4 * np.pi * G * rho_hat / k_sr
+    return np.real(fft.ifftn(phi_hat))

nbody/utils/integrate.py

@@ -77,7 +77,8 @@ def to_particles_3d(y: np.ndarray) -> np.ndarray:
     n_steps = y.shape[0]
     n_particles = y.shape[1] // 7
     y = y.reshape((n_steps, n_particles, 7))
-    # logger.debug(f"Unflattened array into {y.shape=}")
+
+    logger.info(f"Unflattened array into {y.shape=}")
     return y



nbody/utils/model.py

@@ -12,3 +12,11 @@ def model_density_distribution(r_bins: np.ndarray, M: float = 5, a: float = 5) -
     """
     rho = M / (2 * np.pi) * a / (r_bins * (r_bins + a)**3)
     return rho
+
+
+def model_particle_count(r_bins: np.ndarray, M: float = 5, a: float = 5, mi: float = 1) -> np.ndarray:
+    rho = model_density_distribution(r_bins, M, a)
+    v_shells = 4/3 * np.pi * (r_bins[1:]**3 - r_bins[:-1]**3)
+    v_shells = np.insert(v_shells, 0, 4/3 * np.pi * r_bins[0]**3)
+    n_shells = rho * v_shells / mi
+    return n_shells

nbody/utils/particles.py

@@ -1,6 +1,9 @@
 import numpy as np
 import matplotlib.pyplot as plt
-from astropy import units as u
+from matplotlib.animation import FuncAnimation
+from pathlib import Path
+from .units import apply_units
+

 import logging
 logger = logging.getLogger(__name__)
@@ -42,6 +45,16 @@ def density_distribution(r_bins: np.ndarray, particles: np.ndarray, ret_error: b
     else:
         return density

+def particle_count(r_bins, particles):
+    r = np.linalg.norm(particles[:, :3], axis=1)
+    # r_bins = np.insert(r_bins, 0, 0)
+    count = np.zeros_like(r_bins)
+
+    for i in range(len(r_bins) - 1):
+        mask = (r >= r_bins[i]) & (r < r_bins[i+1])
+        count[i] = np.count_nonzero(mask)
+    return count
+


 def r_distribution(particles: np.ndarray):
@@ -94,17 +107,16 @@ def mean_interparticle_distance(particles: np.ndarray):
     epsilon = (1 / rho)**(1/3)
     logger.info(f"Found mean interparticle distance: {epsilon}")
     return epsilon
-    # TODO: check if this is correct



 def half_mass_radius(particles: np.ndarray):
     """
     Computes the half mass radius of a set of particles.
-    Assumes that the particles array has the following columns: x, y, z ...
+    Assumes that the particles array has the following columns: x, y, z, m, ...
     """
-    if particles.shape[1] < 3:
+    if particles.shape[1] < 4:
-        raise ValueError("Particles array must have at least 3 columns: x, y, z")
+        raise ValueError("Particles array must have at least 4 columns: x, y, z, m")

     # even though in the simple example, all the masses are the same, we will consider the general case
     total_mass = np.sum(particles[:, 3])
@@ -125,31 +137,6 @@ def half_mass_radius(particles: np.ndarray):



-def total_energy(particles: np.ndarray):
-    """
-    Computes the total energy of a set of particles.
-    Assumes that the particles array has the following columns: x, y, z, vx, vy, vz, m.
-    Uses the approximation that the particles are in a central potential as computed in analytical.py
-    """
-    if particles.shape[1] != 7:
-        raise ValueError("Particles array must have 7 columns: x, y, z, vx, vy, vz, m")
-
-    # compute the kinetic energy
-    v = particles[:, 3:6]
-    m = particles[:, 6]
-    ke = 0.5 * np.sum(m * np.linalg.norm(v, axis=1)**2)
-
-    # # compute the potential energy
-    # forces = forces_basic.analytical_forces(particles)
-    # r = np.linalg.norm(particles[:, :3], axis=1)
-    # pe_particles = -forces[:, 0] * particles[:, 0] - forces[:, 1] * particles[:, 1] - forces[:, 2] * particles[:, 2]
-    # pe = np.sum(pe_particles)
-    # # TODO: i am pretty sure this is wrong
-    pe = 0
-    return ke + pe
-
-
-
 def particles_plot_3d(positions: np.ndarray, masses: np.ndarray, title: str = "Particle distribution (3D)"):
     """
     Plots a 3D scatter plot of a set of particles.
@@ -214,3 +201,129 @@ def particles_plot_2d(particles: np.ndarray, title: str = "Flattened distributio
         plt.show()
     else:
         ax.hist2d(x, y, bins=100, cmap='coolwarm')
+
+
+def particles_plot_2d_multiframe(particles_3d: np.ndarray, t_range: np.ndarray, title: str):
+    # reduce the font size
+    fig, axs = plt.subplots(4, 6, figsize=(20, 12))
+    fig.suptitle(title)
+
+    # make sure we have enough time steps to show
+    diff = axs.size - particles_3d.shape[0]
+    if diff > 0:
+        logger.debug(f"Adding dummy time steps: {diff=} -> {axs.size=}")
+        plot_t_range = np.concatenate([t_range, np.zeros(diff)])
+        plot_particles_in_time = particles_3d
+    elif diff < 0:
+        logger.debug(f"Too many steps to plot - reducing: {particles_3d.shape[0]} -> {axs.size}")
+        # skip some of the time steps
+        plot_t_range = []
+        plot_particles_in_time = []
+        for i in range(axs.size):
+            idx = int(i / axs.size * particles_3d.shape[0])
+            # make sure we have the first and last time step are included
+            if i == 0:
+                idx = 0
+            elif i == axs.size - 1:
+                idx = particles_3d.shape[0] - 1
+
+            plot_t_range.append(t_range[idx])
+            plot_particles_in_time.append(particles_3d[idx])
+    else:
+        plot_t_range = t_range
+        plot_particles_in_time = particles_3d
+
+    for p, t, a in zip(plot_particles_in_time, plot_t_range, axs.flat):
+        a.set_title(f"t={t:.2g}")
+        particles_plot_2d(p, ax=a)
+
+    plt.show()
+
+
+def particles_plot_2d_animated(particles_3d: np.ndarray, t_range: np.ndarray, output: Path):
+    # Also: show the 2D evolution as a GIF
+    plt.ioff()
+    fig, ax = plt.subplots()
+    fig.suptitle("Particle evolution (top view)")
+    ax.set_aspect('equal')
+    xmax = np.max(particles_3d[:, :, :3])
+    ax.set_xlim(-xmax, xmax)
+    ax.set_ylim(-xmax, xmax)
+    ax.set_xlabel('x')
+    ax.set_ylabel('y')
+
+    def update(i):
+        ax.set_title(f"t={t_range[i]:.2g}")
+        particles_plot_2d(particles_3d[i], ax=ax)
+        ax.set_xlim(-xmax, xmax)  # Ensure x limits remain fixed
+        ax.set_ylim(-xmax, xmax)  # Ensure y limits remain fixed
+
+    ani = FuncAnimation(fig, update, frames=range(len(particles_3d)), repeat=False)
+    ani.save(output, writer='ffmpeg', fps=5)
+    plt.close(fig)
+    plt.ion()
+
+
+
+def particles_plot_radial_evolution(particles_3d: np.ndarray, t_range: np.ndarray):
+    # radial extrema of the particles - disk surface
+    n_steps = particles_3d.shape[0]
+    r_mins = np.zeros(n_steps)
+    r_maxs = np.zeros(n_steps)
+    r_hms = np.zeros(n_steps)
+    for i in range(n_steps):
+        p = particles_3d[i, ...]
+        # exclude the black hole
+        r = np.linalg.norm(p[1:,:3], axis=1)
+        # plt.plot(r[1::100], alpha=0.5)
+        r_mins[i] = np.min(r)
+        r_maxs[i] = np.max(r)
+        r_hms[i] = half_mass_radius(p)
+
+    r_mins = apply_units(r_mins, "position")
+    r_maxs = apply_units(r_maxs, "position")
+
+    plt.figure()
+    plt.plot(t_range, r_mins, label='$r_{min}$', color=plt.cm.Blues(0.5))
+    plt.plot(t_range, r_maxs, label='$r_{max}$', color=plt.cm.Blues(0.8))
+    plt.fill_between(t_range, r_mins, r_maxs, color=plt.cm.Blues(0.2))
+    plt.plot(t_range, r_hms, label='$r_{hm}$', color=plt.cm.Greens(0.5))
+
+    # show the initial conditions
+    plt.hlines(r_mins[0], t_range[0], t_range[-1], color='black', linestyle='--')
+    plt.hlines(r_maxs[0], t_range[0], t_range[-1], color='black', linestyle='--')
+
+
+    plt.title(f'Radial extrema over {n_steps} timesteps')
+    plt.xlabel('Integration time')
+    plt.ylabel(f'{r_mins.unit:latex}')
+    plt.legend()
+    plt.show()
+
+
+
+def particles_plot_orbits(particles_3d: np.ndarray, t_range: np.ndarray):
+    # particle orbits
+    fig, axs = plt.subplots(2, 1)
+    axs[0].set_position([0, 0.3, 1, 0.6])
+    axs[0].set_xlabel('x')
+    axs[0].set_ylabel('y')
+
+    axs[1].set_position([0, 0, 1, 0.2])
+    axs[1].set_xlabel("t")
+    axs[1].set_ylabel('z')
+    fig.suptitle('Particle orbits')
+
+    print(particles_3d.shape)
+    mid = particles_3d.shape[1] // 2
+    particle_idx = [1, 2, 3, 4, 5, mid-2, mid-1, mid, mid+1, mid+2,  -5, -4, -3, -2, -1]
+    colors = plt.cm.Blues(np.linspace(0.2, 0.8, len(particle_idx)))
+    for i, idx in enumerate(particle_idx):
+        x = particles_3d[:, idx, 0]
+        y = particles_3d[:, idx, 1]
+        z = particles_3d[:, idx, 2]
+        axs[0].plot(x, y, label=f'p{idx}', color=colors[i])
+        axs[1].plot(z, label=f'p{idx}', color=colors[i])
+
+    # plt.legend()
+    plt.show()

nbody/utils/solver_mesh.py

@@ -97,34 +97,18 @@ def particles_to_mesh(particles: np.ndarray, mesh: np.ndarray, axis: np.ndarray,
             mesh[ijk[0], ijk[1], ijk[2]] += weight * m


-'''
+def pm_ode_setup(particles: np.ndarray, force_function: callable, boundary_condition: str) -> tuple[np.ndarray, callable]:
-#### Actually need to patch this
-def ode_setup(particles: np.ndarray, force_function: callable) -> tuple[np.ndarray, callable]:
     """
-    Linearizes the ODE system for the particles interacting gravitationally.
+    Returns a linear ode function that can be integrated by an ODE solver and implements the given boundary conditions.
-    Returns:
-        - the Y0 array corresponding to the initial conditions (x0 and v0)
-        - the function that computes the right hand side of the ODE with function signature f(t, y)
-    Assumes that the particles array has the following columns: x, y, z, vx, vy, vz, m.
     """
     if particles.shape[1] != 7:
         raise ValueError("Particles array must have 7 columns: x, y, z, vx, vy, vz, m")

-    # for the integrators we need to flatten array which contains 7 columns for now
+    def f(p, t):
-    # we don't really care how we reshape as long as we unflatten consistently
-    particles = particles.flatten()
-    logger.debug(f"Reshaped 7 columns into {particles.shape=}")
-
-    def f(y, t):
         """
         Computes the right hand side of the ODE system.
         The ODE system is linearized around the current positions and velocities.
         """
-        p = to_particles(y)
-        # this is explicitly a copy, which has shape (n, 7)
-        # columns x, y, z, vx, vy, vz, m
-        # (need to keep y intact since integrators make multiple function calls)
-
         forces = force_function(p[:, [0, 1, 2, -1]])

         # compute the accelerations
@@ -139,12 +123,6 @@ def ode_setup(particles: np.ndarray, force_function: callable) -> tuple[np.ndarr
         # the masses remain unchanged
         # p[:, -1] = p[:, -1]

-        # flatten the array again
-        # logger.debug(f"As particles: {y}")
-        p = p.reshape(-1, copy=False)
-
-        # logger.debug(f"As column: {y}")
         return p

-    return particles, f
+    return f
-'''
